Bone-level, tissue-level and remote-anchorage implants in one range, designed and manufactured by Surcam for clinicians in 25+ countries.
PRO.GRIP internal hex PRO.SEAL conical connection

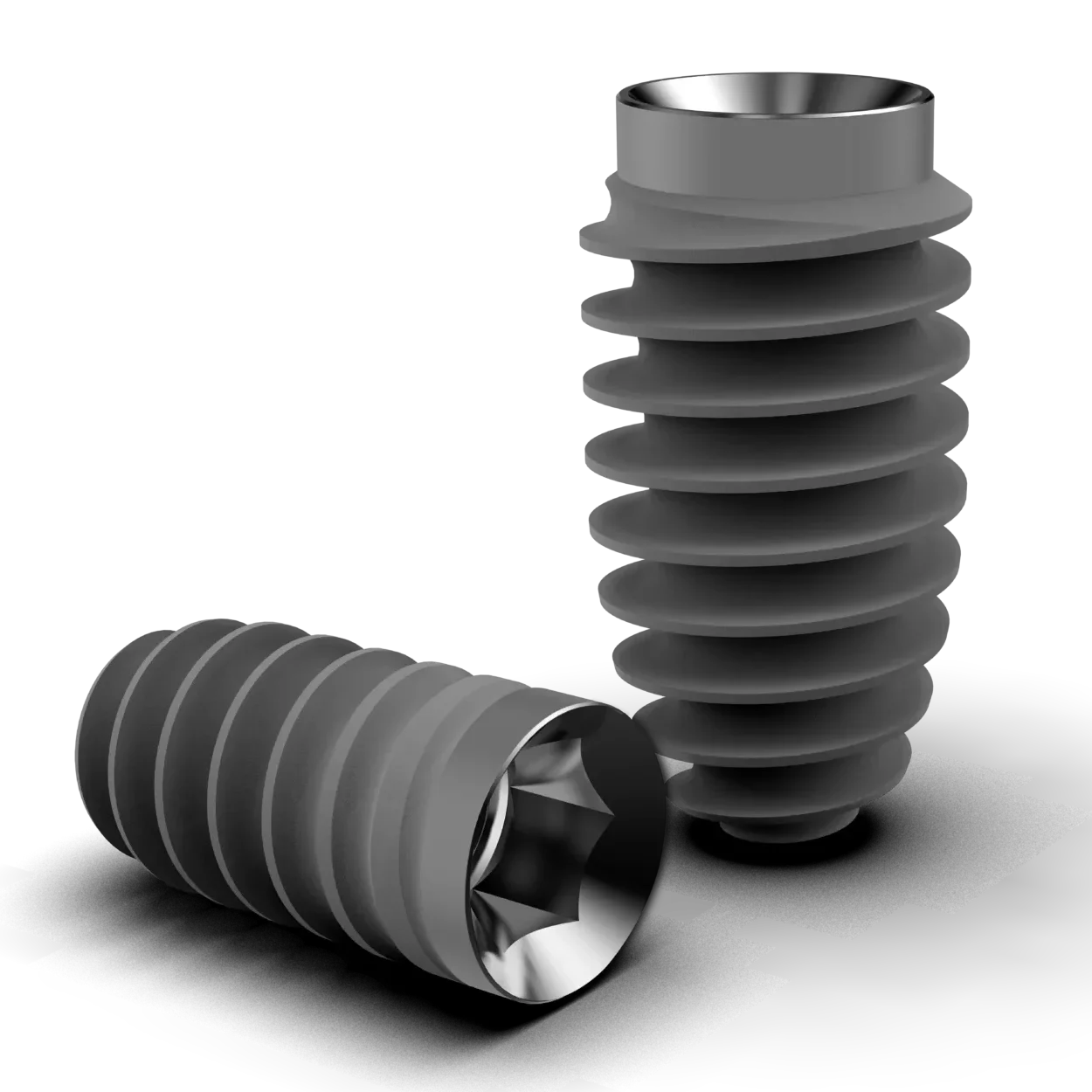

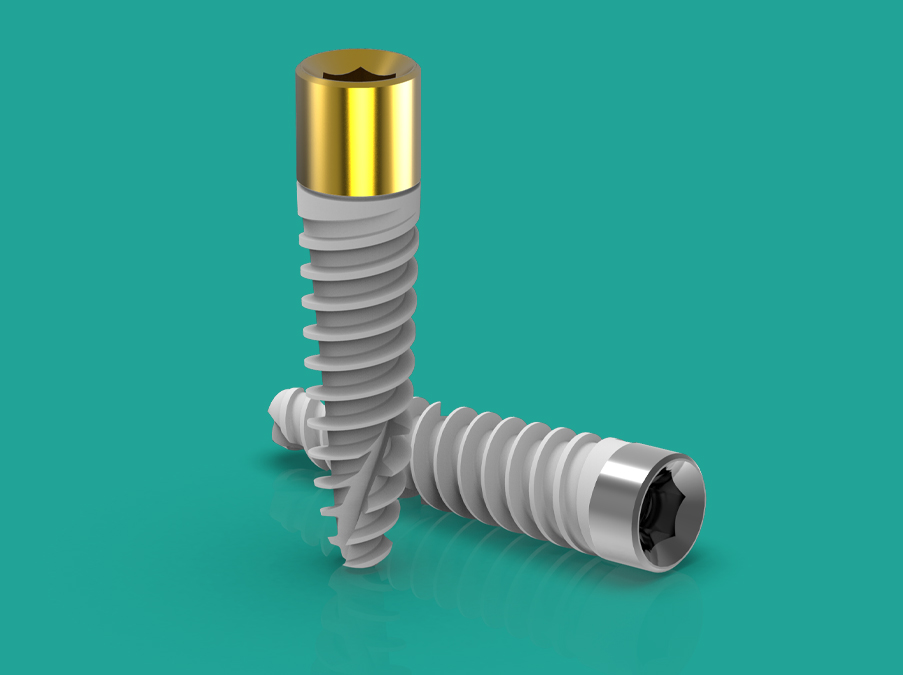

Order onlineThe connection every abutment seats on, with the internal thread for its screw. PRO.GRIP, platform 3.75.
A short polished neck for a clean emergence profile.
Coarse, self-cutting threads that condense bone as they go, for immediate stability in all bone types.
Anchors for controlled insertion, up to 50 N·cm.
Ti-6Al-4V ELI. Ø3.8, 4.2 and 5.0 mm, from 6 to 22 mm long.
Search by REF or product name, filtered by the connection you work with.
From standard tapered implants to zygomatic and pterygoid anchorage. Filter by the size your case needs, then drag to browse.
Every Surcam implant, abutment and lab part is built around one of two prosthetic connections. Seen from above, the difference is the seat: a flat platform around the hex, or a cone.
Flat platform
Platforms 3.75 and 4.5
Internal hexagon
2.43 mm
Internal hex connection
The system behind most of the range, from 6 mm short implants to zygomatic, with a full prosthetic and multi-unit programme.
Connection
Internal hexagon 2.43 mm
Platforms
3.75 · 4.5
Abutment screw
Max 15 N·cm, per catalog
In the catalog
585 products
The platform is stated on every part.
PRO.GRIP parts
Conical seal
NP 3.5 / RP 4.3
Internal hex
Inside the cone
Conical connection, NP 3.5 / RP 4.3
With its own healing, impression, lab, CAD/CAM and multi-unit parts, and the platform stated on every one.
Connection
Conical
Platforms
NP 3.5 · RP 4.3
Angled multi-unit
17° · 30° · 45°
In the catalog
139 products
Platform and connection are stated on every part.
PRO.SEAL partsChoose your system. Each category lists the parts that seat on it, from healing cap to final abutment.
Pick a design, then a size, to copy its REF or open the product.
PRO.GRIP internal hex · Ø3.8–5.0 mm · 6–22 mm · 21 REFs
| Diameter | 6 mm | 8 mm | 10 mm | 11.5 mm | 13 mm | 16 mm | 18 mm | 20 mm | 22 mm |
|---|---|---|---|---|---|---|---|---|---|
| Ø3.8 | |||||||||
| Ø4.2 | Not made | Not made | Not made | ||||||
| Ø5.0 | Not made | Not made | Not made |
PRO.GRIP internal hex · Ø3.3–6.0 mm · 8–18 mm · 27 REFs
| Diameter | 8 mm | 10 mm | 11.5 mm | 13 mm | 16 mm | 18 mm |
|---|---|---|---|---|---|---|
| Ø3.3 | Not made | Not made | ||||
| Ø3.75 | ||||||
| Ø4.2 | ||||||
| Ø5.0 | ||||||
| Ø6.0 | Not made |
PRO.GRIP internal hex · Ø3.3–5.0 mm · 8–18 mm · 21 REFs
| Diameter | 8 mm | 10 mm | 11.5 mm | 13 mm | 16 mm | 18 mm |
|---|---|---|---|---|---|---|
| Ø3.3 | Not made | |||||
| Ø3.75 | ||||||
| Ø4.2 | Not made | |||||
| Ø5.0 | Not made |
PRO.GRIP internal hex, 2.0 mm neck · Ø3.3–4.2 mm · 8–16 mm · 13 REFs
| Diameter | 8 mm | 10 mm | 11.5 mm | 13 mm | 16 mm |
|---|---|---|---|---|---|
| Ø3.3 | |||||
| Ø3.75 | Not made | Not made | |||
| Ø4.2 |
PRO.GRIP internal hex · Ø3.5–5.0 mm · 10–20 mm · 16 REFs
| Diameter | 10 mm | 11.5 mm | 13 mm | 16 mm | 18 mm | 20 mm |
|---|---|---|---|---|---|---|
| Ø3.5 | ||||||
| Ø4.2 | ||||||
| Ø5.0 | Not made | Not made |
PRO.GRIP internal hex · Ø4.0–5.0 mm · 10–20 mm · 9 REFs
| Diameter | 10 mm | 11.5 mm | 13 mm | 16 mm | 18 mm | 20 mm |
|---|---|---|---|---|---|---|
| Ø4.0 | ||||||
| Ø5.0 | Not made | Not made | Not made |

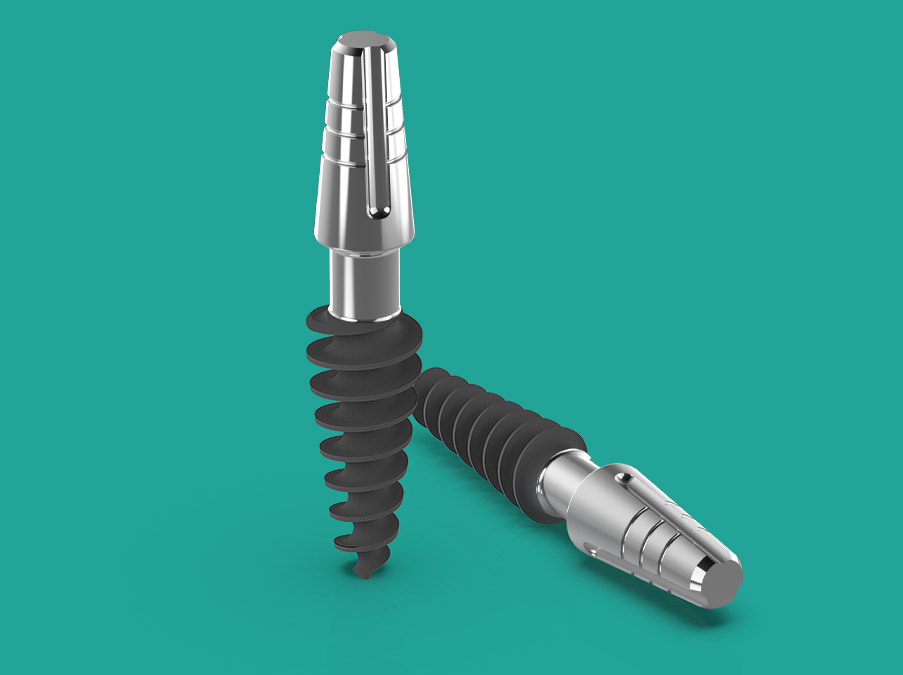

One-piece, bendable neck · Ø3.0–5.5 mm · 6–20 mm · 38 REFs
| Diameter | 6 mm | 8 mm | 10 mm | 12 mm | 14 mm | 16 mm | 18 mm | 20 mm |
|---|---|---|---|---|---|---|---|---|
| Ø3.0 | Not made | Not made | Not made | |||||
| Ø3.5 | Not made | Not made | ||||||
| Ø4.0 | ||||||||
| Ø4.5 | Not made | |||||||
| Ø5.0 | Not made | |||||||
| Ø5.5 | Not made | Not made | Not made |
PRO.GRIP internal hex · Ø4.2 mm · 16–28 mm · 11 REFs
| Diameter | 16 mm | 18 mm | 20 mm | 22 mm | 25 mm | 28 mm |
|---|---|---|---|---|---|---|
| Ø4.22.0 mm neck | ||||||
| Ø4.24.0 mm neck | Not made |
PRO.GRIP internal hex · Ø3.5–4.2 mm · 30–60 mm · 26 REFs
| Diameter | 30 mm | 32.5 mm | 35 mm | 37.5 mm | 40 mm | 42.5 mm | 45 mm | 47.5 mm | 50 mm | 52.5 mm | 55 mm | 57.5 mm | 60 mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ø3.5 | |||||||||||||
| Ø4.2 |
PRO.SEAL conical, NP 3.5 and RP 4.3 · Ø3.5–5.0 mm · 7–15 mm · 17 REFs
| Diameter | 7 mm | 8 mm | 10 mm | 11.5 mm | 13 mm | 15 mm |
|---|---|---|---|---|---|---|
| Ø3.5 | ||||||
| Ø4.3 | ||||||
| Ø5.0 | Not made |
PRO.SEAL conical, RP 4.3 · Ø4.0–5.0 mm · 7–16 mm · 10 REFs
| Diameter | 7 mm | 8 mm | 10 mm | 11.5 mm | 13 mm | 16 mm |
|---|---|---|---|---|---|---|
| Ø4.0 | ||||||
| Ø5.0 | Not made | Not made |
Pick a size to see its REF.
The parts for each stage of treatment, for both connections, with their counts in the catalog.
31 products
Coated implant drills by diameter and length, drivers, torque wrenches and the kits that hold them.
63 products
Lab analogs, digital analogs, Ti-bases and scan bodies for printed and milled models.
302 products
Straight, angled, temporary and casting abutments, multi-unit abutments, overdenture attachments and screws.
Rotational and anti-rotational Ti-bases with their screws, scanning abutment adaptors, scan bodies and digital model analogs, for both connections. CAD/CAM libraries are on the CAD/CAM page.
The instructions for use and all 19 catalogs, with sizes, drilling protocols and part numbers.
Surcam Academy courses and lecturers.
Barcelona, 16 to 21 December 2026
With Universitat de Barcelona. CadaverLab hands-on, model workshops and live surgery.
Ask about the courseOral and Maxillofacial Surgeon. Surcam Academy lecturer.
DMD. Surcam lecturer since 2020.

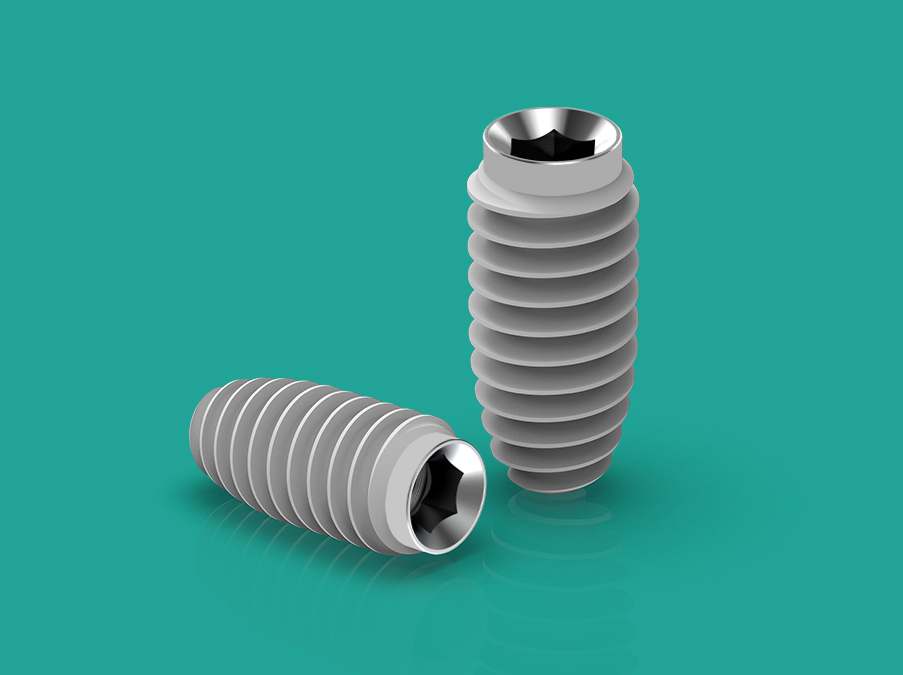

“The U-Type gives me reliable stability, even in softer bone where most systems struggle.”
25+ countriesFounded in 2002
Design and manufacturing, since 2002
DMDMexicoGreece
Surcam implants and abutments integrate seamlessly into our workflow. The quality is exceptional, and delivery is always reliable.
Partner with Surcam for implant systems and expert support dedicated to precision, performance and clinical reliability. Our team answers orders, clinical, distributor and Academy enquiries.
